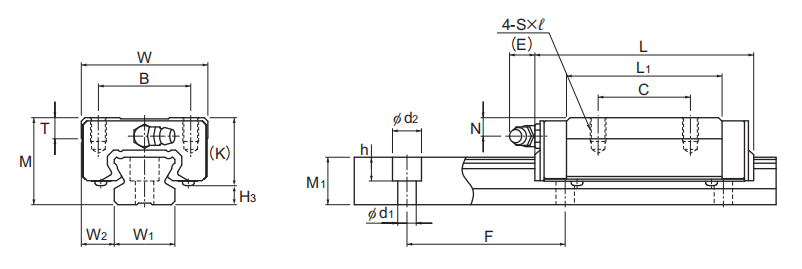

| Unit: mm | ||
| Model | SR 15M1W | |
| Number | ||
| Outer | Height （M） | 24 |
| dimensions | Width （W） | 34 |
| Length （ L） | 57 | |
| LM block | B | 26 |
| dimensions | C | 26 |
| S×ℓ | M4×7 | |
| L 1 | 39.5 | |
| T | 6 | |
| K | 19.5 | |
| N | 6 | |
| E | 5.5 | |
| Grease nipple | Grease nipple | |
| H3 | 4.5 | |
| LM rail | Width (W1±0.05) | 15 |
| dimensions | W2 | 9.5 |
| Height （M1） | 12.5 | |
| Pitch （F） | 60 | |
| d1 × d2 ×h | 3.5×6×4.5 | |
| Length (Max) | 1240 | |
| Basic load | C (kN) | 13.8 |
| rating | C0 (kN) | 20.5 |
| Mass | LM block (kg) | 0.2 |
| LM rail (kg/m) | 1.2 | |
