HXHV Grooved Raceway Small Thrust Ball Bearing

Retainer Material: Brass Gasket Type: Grooved Raceway Gasket Material: Stainless steel or Chrome Steel Please contact us for the latest price.

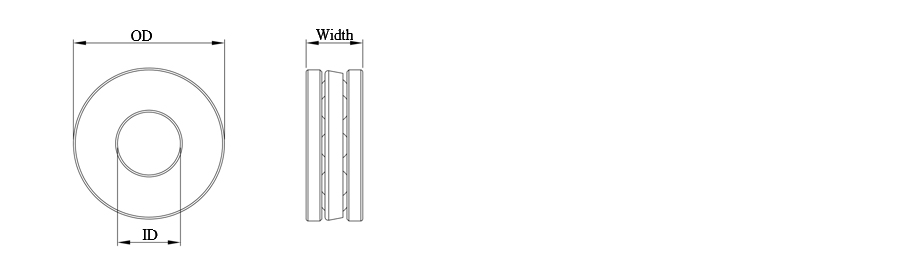

Model Number	ID	OD	Width	Dynamic axial load	Static axial load	Max Speed
SF3-8M	3 mm	8 mm	3.5 mm	540 N	432 N	9900 rpm
F3-8M	3 mm	8 mm	3.5 mm	600 N	480 N	11000 rpm
SF4-9M	4 mm	9 mm	4 mm	720 N	468 N	7200 rpm
F4-9M	4 mm	9 mm	4 mm	800 N	520 N	8000 rpm
SF5-10M	5 mm	10 mm	4 mm	855 N	747 N	4590 rpm
SF4-10M	4 mm	10 mm	4 mm	592 N	522 N	5400 rpm
F5-10M	5 mm	10 mm	4 mm	950 N	830 N	5100 rpm
F4-10M	4 mm	10 mm	4 mm	658 N	580 N	6000 rpm
SF5-11M	5 mm	11 mm	4.5 mm	889 N	792 N	4500 rpm
F5-11M	5 mm	11 mm	4.5 mm	988 N	880 N	5000 rpm
SF6-12M	6 mm	12 mm	4.5 mm	1440 N	1130 N	4500 rpm
SF5-12M	5 mm	12 mm	4 mm	889 N	792 N	4500 rpm
F6-12M	6 mm	12 mm	4.5 mm	1600 N	1255 N	5000 rpm
F5-12M	5 mm	12 mm	4 mm	988 N	880 N	5000 rpm
SF7-13M	7 mm	13 mm	4.5 mm	1280 N	1130 N	3600 rpm
SF6-13M	6 mm	13 mm	5 mm	1440 N	1130 N	4500 rpm
F7-13M	7 mm	13 mm	4.5 mm	1422 N	1255 N	4000 rpm
F6-13M	6 mm	13 mm	5 mm	1600 N	1255 N	5000 rpm
SF6-14M	6 mm	14 mm	5 mm	1620 N	1429 N	3600 rpm
F6-14M	6 mm	14 mm	5 mm	1800 N	1588 N	4000 rpm
SF7-15M	7 mm	15 mm	5 mm	1980 N	1800 N	3240 rpm
F7-15M	7 mm	15 mm	5 mm	2200 N	2000 N	3600 rpm
SF8-16M	8 mm	16 mm	5 mm	2250 N	2700 N	3600 rpm
F8-16M	8 mm	16 mm	5 mm	2500 N	3000 N	4000 rpm
SF7-17M	7 mm	17 mm	6 mm	2340 N	2030 N	3150 rpm
F7-17M	7 mm	17 mm	6 mm	2600 N	2256 N	3500 rpm
SF10-18M	10 mm	18 mm	5.5 mm	2007 N	2449 N	2250 rpm
F10-18M	10 mm	18 mm	5.5 mm	2230 N	2721 N	2500 rpm
SF8-19M	8 mm	19 mm	7 mm	3107 N	2700 N	2700 rpm
F8-19M	8 mm	19 mm	7 mm	3452 N	3000 N	3000 rpm
SF9-20M	9 mm	20 mm	7 mm	3020 N	2699 N	2250 rpm
F9-20M	9 mm	20 mm	7 mm	3356 N	2999 N	2500 rpm
